Underground Electric Loader

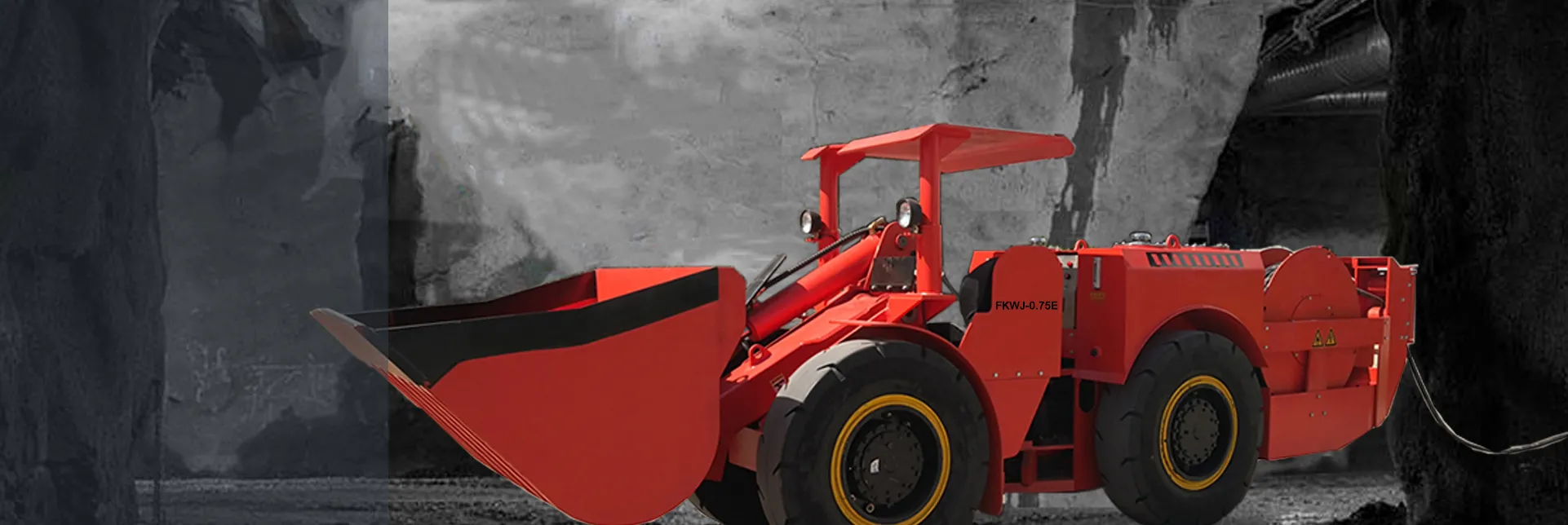

FKWJ-0.7.5E Underground Electric Loader

FKWJ-0.75E underground electric loader is mainly used for underground mine shoveling, transportation of ore and rubble after the bursting and is also used in railway, highway, and tunnel construction project especially those places such as bad working conditions, narrow, work site, low and muddy work site.
Contacta con nosotros

Product Description

FKWJ-0.75E underground electric loader is mainly used for underground mine shoveling, transportation of ore and rubble after the bursting and is also used in railway, highway, and tunnel construction project especially those places such as bad working conditions, narrow, work site, low and muddy work site.


By eliminating castings and reducing weight, we increase the life and strength of the frame without sacrificing performance.The FKWJ-0.75E underground electric loader features a new axle design for longer life, improved availability and many maintainability features and improvements.New, larger wheel bearings feature optimized positioning and flange-mounted rims for longer life and easier serviceability. Four-planet final drives with larger gear sets. An updated brake design provides greater capacity, a remotely mounted brake bleeder, easier serviceability and longer brake life.Traction control reduces tire slip, extending tire life and reducing consumable costs.


The hydraulic pump of FKWJ-0.6E underground electric loader is sauer pv22. The hydraulic motor is equipped with sauer mv22. The accessories of all our equipment are international famous brands. Electric drive systems have fewer moving parts and parts than traditional torque converters and  mechanical transmissions, extending maintenance intervals compared to mechanical transmissions.Operator's cab

Side seated operator position for efficient bi-directional operation with maximum visibility; Ergonomic operator seat with seat belt for comfort during a full operating shift. Protection class IP55, high protection will prolong the service life. Use high-quality grease to prolong the life of the bearing.Supply big power and stable performance.


The power system is driven by 45KW electric motor, hydraulic control variable displacement pump, Quantitative motor, front and rear axle reducer and four wheel drive. Front and back fuselage use slewing bearing coupling oscillation. Working system adopts hydraulic control pilot operating system, making the scooptram operation more flexible, simple, efficient and low failure rate. Emergency parking brake uses a drive axle wet brake, spring brake, hydraulic lift brake, sudden power off brake, safe and reliable.

Advantage

1. Ergonomics Canopy with side seat to provide good bi-directional view of operation.

2. An enhanced boom and load frame geometry optimizes digging performance.


DETAILS SHOW

FKWJ-0.7.5E

General Parameter
Loader Weight and Load Capacity
 Rated capacity  1500 kg Scooptram weight 7000 kg
 Length 5710 mm Load weight   8500 kg
 Width(bucket)   1295 mmElectric motor
 Width(frame)   1250 mmRated Power 45 KW/1480 rpm
 Height(cabin)   1920 mmPower Voltage 380 V/440 V, 50 HZ/60 HZ
 Bucket volume0.75  m³  Control voltage 24 V
 Discharging height  1300 mmHydraulic Pump
 Wheelbase   1880 mmBrand  SAUER
 Min. Ground clearance195mmModel   PV22
 Departure angle  15°Type

 Fully reversible variable

piston pump

 Steering angle left/right 38°Hydraulic Motor
 Rear axle swing ±6.5°Brand  SAUER
 Min. Turning radius inner 2240 mmModel   MV22
 Min. Turning radius Outer 3890 mmType  Imported Variable piston motor
Lubrication systemBucket
 Manual lubrication   YES Material Manganese steel
Control system Ejector Bucket For optional
 Manual control  YES



1

Combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR(spring applied, hydraulic release).

2

Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.

3

Hydraulic joystick control for working to reduce the labor intensity of the driver.

Descargar


PRODUCTOCARGA ÚTILBALDELONGITUDANCHOALTURAFUERZATIPOHOJA DE ESPECIFICACIONES
FKWJ-0.61200 kg0.6 m³4910 mm1150 mm1825 mm58 kwMotor dieseldown
FKWJ-12000 kg1 m³5700 mm1300 mm1920 mm58 kwMotor dieseldown
FKWJ-24000 kg2 m³7060 mm1500 mm2009 mm84 kwMotor dieseldown
FKWJ-37000 kg3 m³9350 mm2150 mm2252 mm165 kwMotor dieseldown
FKWJ-48000 kg4 m³9400 mm2500 mm2300 mm170 kwMotor dieseldown
FKWJ-614000 kg6 m³10502 mm2864mm2545mm 256 kwMotor dieseldown
FKWJ-0.6E1200 kg0.6 m³4960 mm1150 mm1760 mm30 kwMotor eléctricodown
FKWJ-1E2000 kg1 m³5710 mm1300 mm1920 mm45 kwMotor eléctricodown
FKWJ-2E4000 kg2 m³7130 mm1840 mm1964 mm75 kwMotor eléctricodown
FKWJ-3E6000 kg3 m³8600 mm2160 mm2760 mm90 kwMotor eléctricodown
